RA 2600

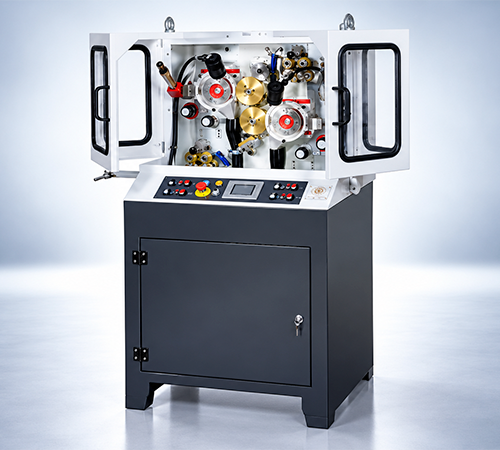

DIAMOND CUTTING MACHINE FOR CHAINS WITH GEOMETRICAL SECTION
Diamond cutting machine mod. RA 2600 with two horizontal heads suitable to carry out cutting and forming on 4, 6, 8 sides on rope chain, ball chain and hammered with geometrical shape chains; concave and convex bevelling and forming on medium and small chains.
Description
| Machinable Products | Ball chain / Hammered with geometrical shape chains (Snake chain) |
| Min. chain diameter | 1 mm |
| Dragging Unit | |
| Feed speed | from 0 to 4 m/min |
| Vice Discs Unit | |
| Discs diameter | 120 mm |
| Depth adjustment | from -20 to +20 mm |
| Centring adjustment | from -10 to +10 mm |
| Horizontal Head | |
| Speed | 7500 rpm |
| Tool holder diameter | 120 mm |
| Installation Data | |
| Wattage | 3,5 kW |
| Power supply | 400 V, 50/60 Hz, 3~ |
| Weight | 520 kg |
